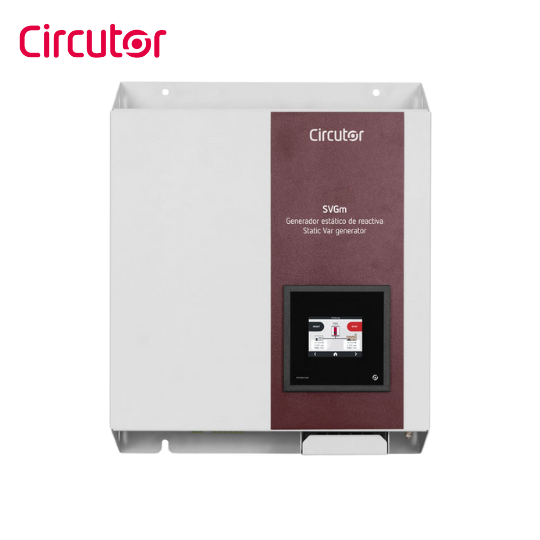

The SVGm series provides dynamic reactive power compensation.Models vary based on system configuration, voltage range, reactive power capacity, and mounting type:
System Configuration:
3W Models:For three-wire systems.
4W Models:For four-wire systems.
Voltage Range and Reactive Power Capacity:
Models are designed for different voltage levels and reactive power capacities, such as:
SVGm-3WF-30M-480:
System: 3 wires, 230–480 V
Reactive Power: 30 kvar at 400 V
Phase Current: 44 A
SVGm-4WF-050M-400:
System: 4 wires, 230–400 V
Reactive Power: 51.7 kvar at 400 V
Phase Current: 75 A
SVGm-3WF-100C-480:
System: 3 wires, 230–480 V
Reactive Power: 100 kvar at 400 V
Phase Current: 145 A
Mounting Type:
M Models:Typically wall-mounted with moderate capacities.
C Models:Floor-mounted units designed for higher capacities.
