Medium voltage PD monitoring

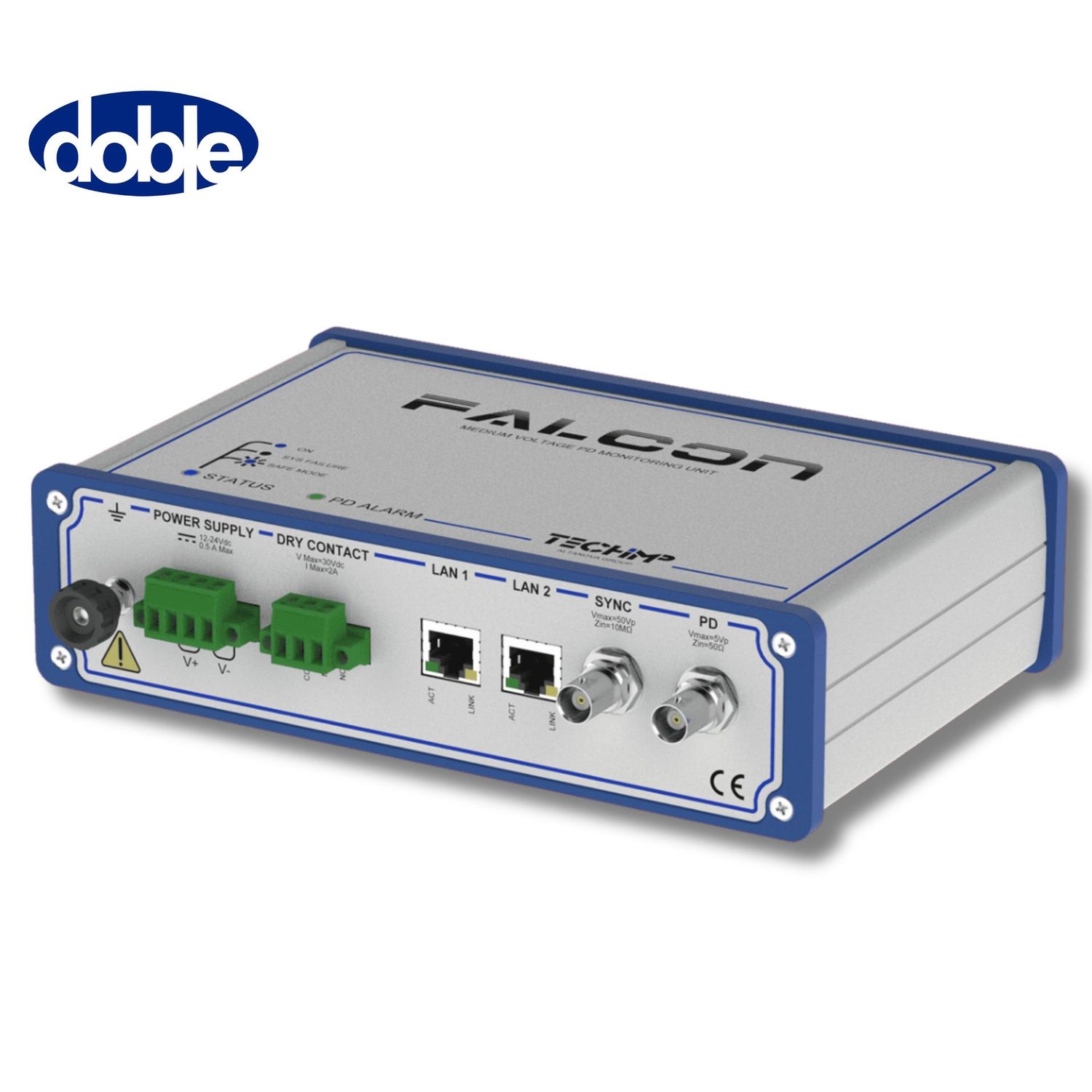

FALCON represents the next generation of Partial Discharge Monitoring (PDM) for Medium Voltage (MV) assets. By migrating patented, high-end technology from High Voltage (HV) monitoring into a cost-effective package, it bridges the gap between sophisticated diagnostics and the economic constraints of MV grids. The system locally processes high-frequency signals from inductive (HFCT) or capacitive (TEV) sensors, providing a non-invasive, fully automated solution for tracking insulation health and preventing catastrophic equipment failure.
Onboard Processing: Local computing and data storage minimize network traffic and allow for remote web-browser access.
Sensor Compatibility: Supports both Inductive (HFCT) and Capacitive (TEV) sensor inputs
Patented T/F-Map Technology: Automatically calculates time and frequency content for every pulse to create a "T-F Map" for precise diagnostics.
Ultra-Wide Bandwidth: Captures PD pulse peaks, phases, and full waveforms for deep shape analysis.
Automated Analytics: Features automatic noise rejection, pulse elaboration, and trend recognition to identify worsening insulation conditions.
Signal Separation: Efficiently differentiates between various discharge sources and background noise.
Plug-and-Play Design: Simplified installation with auto-setting capabilities to reduce commissioning time.
